HTS039M ChemiSCREEN™ Membrane Preparation Recombinant Human D2 Dopamine Receptor

HTS039M
200 units
Purchase on Sigma-Aldrich

Overview

Replacement Information

Key Spec Table

SpeciesHost CellsProtein Target
Human Chem-1D2L
Description
Catalogue NumberHTS039M
Brand Family Chemicon®
Trade Name
  • ChemiScreen
  • Chemicon
DescriptionChemiSCREEN™ Membrane Preparation Recombinant Human D2 Dopamine Receptor
OverviewHuman Dopamine Receptor 2
Background InformationDopamine is a catecholamine neurotransmitter that functions in the CNS to control locomotor, cognitive, emotional and neurendocrine processes, and in the periphery to modulate cardiovascular, renal and gastrointestinal processes. The biological activities of dopamine are mediated by a family of five GPCRs. The D1 and D5 subtypes couple to Gs to increase intracellular cAMP, whereas the D2, D3 and D4 subtypes couple to Gi to reduce cAMP (Missale et al., 1998). The D2 dopamine receptors have been of particular clinical interest due to their regulation of prolactin secretion and their affinity for antipsychotic drugs. The D2 receptor exists as two alternatively spliced isoforms differing in the insertion of a stretch of 29 amino acids in the third intracellular loop (D2S and D2L) (Giros et al., 1989; Grandy et al., 1989). Millipore's D2 dopamine membrane preparations are crude membrane preparations made from our proprietary stable recombinant cell lines to ensure high-level of GPCR surface expression; thus, they are ideal HTS tools for screening of antagonists of D2 dopamine receptor interactions with its ligand. The membrane preparations exhibit a Kd of 0.51nM for [125I]-Iodospiperone. With 5.0 ug/well D2 Dopamine Membrane Prep and 0.1nM [125I]-Iodospiperone, a greater than 10-fold signal-to-background ratio was obtained.
References
Product Information
FormatMembranes
HS Code3822 19 90
PresentationOne package contains enough membranes for at least 200 assays (units), where an unit is the amount of membrane that will yield greater than 10-fold signal:background with [125I]-labeled Iodospiperone at 0.1 nM.

Liquid in packaging buffer: 50 mM Tris pH 7.4, 10% glycerol and 1% BSA with no preservatives.
Packaging method: Membranes protein was adjusted to the indicated concentration in packaging buffer, rapidly frozen, and stored at -80oC.
Quality LevelMQ100
Applications
ApplicationHuman D2L GPCR membrane preparation for Radioligand binding Assays & GTPγS binding.
Key Applications
  • Radioligand binding assay
  • GTPγS binding
Application NotesRadioligand binding assay and GTPγS binding
Biological Information
Entrez Gene Number
Entrez Gene SummaryThis gene encodes the D2 subtype of the dopamine receptor. This G-protein coupled receptor inhibits adenylyl cyclase activity. A missense mutation in this gene causes myoclonus dystonia; other mutations have been associated with schizophrenia. Alternative splicing of this gene results in two transcript variants encoding different isoforms. A third variant has been described, but it has not been determined whether this form is normal or due to aberrant splicing.
Gene Symbol
  • DRD2
  • D
  • D2R
  • D2DR
GPCR ClassA
Host CellsChem-1
Protein TargetD2L
Target Sub-FamilyDopamine
UniProt Number
UniProt SummaryFUNCTION: SwissProt: P14416 # This is one of the five types (D1 to D5) of receptors for dopamine. The activity of this receptor is mediated by G proteins which inhibit adenylyl cyclase.
SIZE: 443 amino acids; 50619 Da
SUBUNIT: Interacts with GPRASP1, neurabin-2 and CLIC6 (By similarity). Interacts with CADPS and CADPS2.
SUBCELLULAR LOCATION: Cell membrane; Multi-pass membrane protein.
DISEASE: SwissProt: P14416 # It has been suggested that DRD2 is involved in psychiatric disorders; especially in schizophrenia. & Defects in DRD2 are associated with myoclonus dystonia (MD) [MIM:159900]; also known as myoclonic dystonia, alcohol- responsive dystonia and dystonia-11 (DYT11). MD is a movement disorder characterized by involuntary lightning jerks and dystonic movements and postures alleviated by alcohol. Inheritance is autosomal dominant. The age of onset, pattern of body involvement, presence of myoclonus and response to alcohol are all variable.
SIMILARITY: SwissProt: P14416 ## Belongs to the G-protein coupled receptor 1 family.

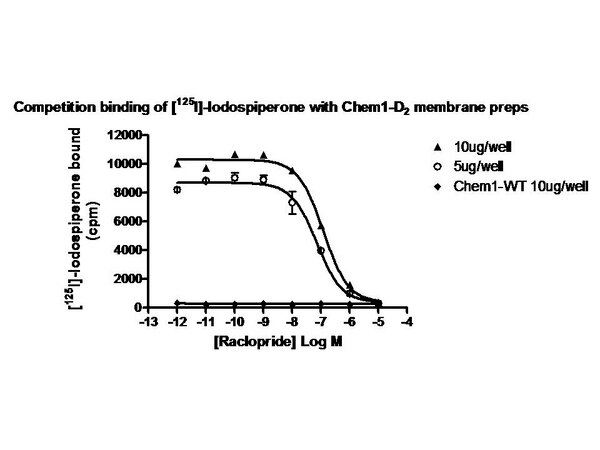

Incubation ConditionsMembranes are mixed with radioactive ligand and unlabeled competitor (see Figures 1 and 2 for concentrations tested) in binding buffer in a nonbinding 96-well plate, and incubated for 1-2 h. Prior to filtration, an FC 96-well harvest plate (Millipore cat. # MAHF C1H) is coated with 0.33% polyethyleneimine for 30 min, then washed with 50mM Tris, pH 7.4. Binding reaction is transferred to the filter plate, and washed 3 times (1 mL per well per wash) with Wash Buffer. The plate is dried and counted.

Binding buffer: 50 mM Tris, pH 7.4, 120mM NaCl, filtered and stored at 4°C
Radioligand: [125I] Iodospiperone (Perkin Elmer # NEX284)
Wash Buffer: 50 mM Tris, pH 7.4, filtered and stored at 4°C.
Physicochemical Information
Dimensions
Materials Information
Toxicological Information
Safety Information according to GHS
Safety Information
Table 1. Signal:background and specific binding values obtained in a competition binding assay with varying amounts of Dopamine Receptor membrane prep.
Product Usage Statements
10 µg/well 5 µg/well
Signal:Background 23.6 27.5
Specific Binding (cpm) 8331 9927.2
SPECIFICATIONS: 1 unit = 5.0 µg membrane preparation
Bmax: 6.03 pmol/mg
Kd: 0.51 nM Usage Statement
  • Unless otherwise stated in our catalog or other company documentation accompanying the product(s), our products are intended for research use only and are not to be used for any other purpose, which includes but is not limited to, unauthorized commercial uses, in vitro diagnostic uses, ex vivo or in vivo therapeutic uses or any type of consumption or application to humans or animals.
Storage and Shipping Information
Storage ConditionsMaintain frozen at -70°C for up to 2 years. Do not freeze and thaw.
Packaging Information
Material Size200 units
Transport Information
Supplemental Information
Specifications
Global Trade Item Number
Catalogue Number GTIN
HTS039M 04053252623103

Documentation

ChemiSCREEN™ Membrane Preparation Recombinant Human D2 Dopamine Receptor MSDS

Title

Safety Data Sheet (SDS)

ChemiSCREEN™ Membrane Preparation Recombinant Human D2 Dopamine Receptor Certificates of Analysis

TitleLot Number
CHEMISCREENTM MEMBRANE PREPARATION RECOMBINANT HUMAN D2 DOPAMINE RECEPTOR - 2341137 2341137
CHEMISCREENTM MEMBRANE PREPARATION RECOMBINANT HUMAN D2 DOPAMINE RECEPTOR - 2135584 2135584
CHEMISCREENTM MEMBRANE PREPARATION RECOMBINANT HUMAN D2 DOPAMINE RECEPTOR - 2294320 2294320

References

Reference overviewPub Med ID
Dopamine receptors: from structure to function
Missale, C, et al
Physiol Rev, 78:189-225 (1998)  1998

9457173 9457173
Alternative splicing directs the expression of two D2 dopamine receptor isoforms.
Giros, B, et al.
Nature, 342: 923-6 (1989)  1988

Show Abstract
2531847 2531847
Cloning of the cDNA and gene for a human D2 dopamine receptor.
Grandy, D K, et al.
Proc. Natl. Acad. Sci. U.S.A., 86: 9762-6 (1989)  1988

Show Abstract
2532362 2532362

Data Sheet

Title
CHEMISCREENTM MEMBRANE PREPARATION RECOMBINANT HUMAN D2 DOPAMINE RECEPTOR
