553014 Raf Kinase Inhibitor IV - CAS 303727-31-3 - Calbiochem

The Raf Kinase Inhibitor IV, also referenced under CAS 303727-31-3, controls the biological activity of Raf Kinase. This small molecule/inhibitor is primarily used for Phosphorylation & Dephosphorylation applications.

MSDS (material safety data sheet) or SDS, CoA and CoQ, dossiers, brochures and other available documents.

Synonyms: 2-(Phenyl)-4-(3-hydroxy-4-chlorophenyl)-5-(4-pyridyl)-1H-imidazole, L 779450

Primary Target: Raf Kinase
View Products on Sigmaaldrich.com
553014
View Pricing & Availability

Overview

Replacement Information

Key Spec Table

CAS #Empirical Formula
303727-31-3C₂₀H₁₄ClN₃O

Pricing & Availability

Catalogue Number AvailabilityPackaging Qty/Pack Price Quantity
553014-1MG
Retrieving availability...
—
Fulfillment and Delivery Delayed Fulfillment and Delivery Delayed
In Stock
Discontinued
Limited Quantities Available
Availability to be confirmed
    Remaining : Will advise
      Remaining : Will advise
      Will advise
      Contact Customer Service
      Contact Customer Service

      		 Plastic ampoule 1 mg
      Retrieving price...
      Price could not be retrieved
      Minimum Quantity is a multiple of
      Maximum Quantity is
      Upon Order Completion More Information
      You Saved ()

      —
      Request Pricing
      		 —
      Description
      OverviewA cell-permeable triarylimidazole compound that acts as a reversible, ATP-competitive, and highly potent inhibitor of Raf kinase (IC50 = 10 nM and Kd = 2.4 nM for B-raf) with 7-, 30-, and 70-fold selectivity over p38α, GSK-3β, and Lck, respectively. Cellular data have indicated that the compound is more effective towards Raf-1and A-Raf than B-Raf.
      Catalogue Number553014
      Brand Family Calbiochem®
      Synonyms2-(Phenyl)-4-(3-hydroxy-4-chlorophenyl)-5-(4-pyridyl)-1H-imidazole, L 779450
      References
      ReferencesTakle, A.K., et al. 2006. Bioorg. Med. Chem. Lett. 16, 378.
      Shelton, J.G., et al. 2003. Leukemia 17, 1765.
      Product Information
      CAS number303727-31-3
      ATP CompetitiveY
      FormOff-white solid
      Hill FormulaC₂₀H₁₄ClN₃O
      Chemical formulaC₂₀H₁₄ClN₃O
      ReversibleY

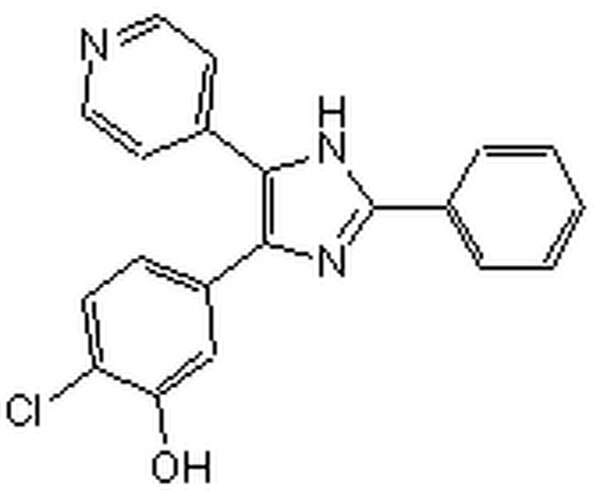

      Structure formula ImageStructure formula Image
      Quality LevelMQ100
      Applications
      Biological Information
      Primary TargetRaf Kinase
      Primary Target IC<sub>50</sub>10 nM; Kd = 2.4 nM for B-raf
      Purity≥97% by HPLC
      Physicochemical Information
      Cell permeableY
      Dimensions
      Materials Information
      Toxicological Information
      Safety Information according to GHS
      Safety Information
      R PhraseR: 36/37/38

      Irritating to eyes, respiratory system and skin.
      S PhraseS: 26-36-45

      In case of contact with eyes, rinse immediately with plenty of water and seek medical advice.
      Wear suitable protective clothing.
      In case of accident or if you feel unwell, seek medical advice immediately (show the label where possible).
      Product Usage Statements
      Storage and Shipping Information
      Ship Code Ambient Temperature Only
      Toxicity Irritant
      Storage +2°C to +8°C
      Protect from Light Protect from light
      Do not freeze Ok to freeze
      Special InstructionsFollowing reconstitution, aliquot and freeze (-20°C). Stock solutions are stable for up to 6 months at -20°C.
      Packaging Information
      Packaged under inert gas Packaged under inert gas
      Transport Information
      Supplemental Information
      Specifications
      Global Trade Item Number
      Catalogue Number GTIN
      553014-1MG 04055977193428

      Documentation

      Raf Kinase Inhibitor IV - CAS 303727-31-3 - Calbiochem SDS

      Title

      Safety Data Sheet (SDS)

      Raf Kinase Inhibitor IV - CAS 303727-31-3 - Calbiochem Certificates of Analysis

      TitleLot Number
      553014

      References

      Reference overview
      Takle, A.K., et al. 2006. Bioorg. Med. Chem. Lett. 16, 378.
      Shelton, J.G., et al. 2003. Leukemia 17, 1765.

      Posters

      Title
      Human Kinome & InhibitorSelect™ Libraries
      Data Sheet

      Note that this data sheet is not lot-specific and is representative of the current specifications for this product. Please consult the vial label and the certificate of analysis for information on specific lots. Also note that shipping conditions may differ from storage conditions.

      Revision25-May-2011 RFH
      Synonyms2-(Phenyl)-4-(3-hydroxy-4-chlorophenyl)-5-(4-pyridyl)-1H-imidazole, L 779450
      DescriptionA cell-permeable triarylimidazole compound that acts as a reversible, ATP-competitive, and highly potent inhibitor of Raf kinase (IC50 = 10 nM & Kd = 2.4 nM for B-raf) with 7-, 30-, and 70-fold selectivity over p38α, GSK-3β, and Lck, respectively. Cellular data have indicated that the compound is more effective towards Raf-1and A-Raf than B-Raf.
      FormOff-white solid
      Intert gas (Yes/No) Packaged under inert gas
      CAS number303727-31-3
      Chemical formulaC₂₀H₁₄ClN₃O
      Structure formulaStructure formula
      Purity≥97% by HPLC
      SolubilityDMSO (100 mg/ml) or EtOH (10 mg/ml)
      Storage Protect from light
      +2°C to +8°C
      Do Not Freeze Ok to freeze
      Special InstructionsFollowing reconstitution, aliquot and freeze (-20°C). Stock solutions are stable for up to 6 months at -20°C.
      Toxicity Irritant
      ReferencesTakle, A.K., et al. 2006. Bioorg. Med. Chem. Lett. 16, 378.
      Shelton, J.G., et al. 2003. Leukemia 17, 1765.
