CBA098 InnoCyte™ Monocyte Cell Migration Assay

InnoCyte™ Monocyte Cell Migration Assay MSDS (material safety data sheet) or SDS, CoA and CoQ, dossiers, brochures and other available documents.
View Products on Sigmaaldrich.com
CBA098
View Pricing & Availability

Overview

Replacement Information

Key Spec Table

Detection Methods
Fluorometric

Pricing & Availability

Catalogue Number AvailabilityPackaging Qty/Pack Price Quantity
CBA098-1KIT
Retrieving availability...
—
Limited Availability Limited Availability
In Stock
Discontinued
Limited Quantities Available
Availability to be confirmed
    Remaining : Will advise
      Remaining : Will advise
      Will advise
      Contact Customer Service
      Contact Customer Service

      		 Plastic ampoule 1 kit
      Retrieving price...
      Price could not be retrieved
      Minimum Quantity is a multiple of
      Maximum Quantity is
      Upon Order Completion More Information
      You Saved ()

      —
      Request Pricing
      		 —
      Description
      OverviewThe InnoCyte™ Monoctye Cell Migration Assay is designed to study the effects of various drugs or agents on monocyte motility or for identifying chemoattractant molecules. The assay is not intended for adherent cell lines, such as fibroblasts or solid tumor cell lines.
      Catalogue NumberCBA098
      Brand Family Calbiochem®
      Materials Required but Not Delivered• Fluorescence plate reader capable of measuring fluorescence in 96-well plates at an excitation wavelength of ~485 nm and an emission wavelength of ~520 nm
      • Pipettes
      • PBS for washing the cells
      References
      ReferencesCravens, P.D. 2007. Scan. J. Immunol. 65, 514.
      Charo, I.F., et al. 2006. N. Engl. J. Med. 354, 610.
      Knitscher, U., et al. 2000. Eur. J. Pharmacol. 401, 259.
      Turner, L., et al. 1999. Eur. J. Immunol. 29, 2288.
      Cross, A.K., et al. 1997. Cytokine 9, 521.
      Product Information
      Detection methodFluorometric
      Form96 Tests
      Format96-Well Plate
      Kit contains96-Well Monocyte Cell Migration Chamber, Black, Conical 96-Well Plate, D-PBS, Calcein-AM, and a user protocol.
      Quality LevelMQ100
      Applications
      Biological Information
      Sample TypeMonocytes
      Physicochemical Information
      Dimensions
      Materials Information
      Toxicological Information
      Safety Information according to GHS
      Safety Information
      R PhraseR: 36/37/38

      Irritating to eyes, respiratory system and skin.
      S PhraseS: 26-36

      In case of contact with eyes, rinse immediately with plenty of water and seek medical advice.
      Wear suitable protective clothing.
      Product Usage Statements
      Intended useThe Calbiochem® InnoCyte™ 96-Well Monoctye Cell Migration Assay is intended for the study of the effects of various drugs or agents on monocyte motility or for identifying chemoattractant molecules. The assay is not intended for adherent cell lines, such as fibroblasts or solid tumor cell lines. To study these cell types, please use Cat. No. CBA010 or CBA017.
      Storage and Shipping Information
      Ship Code Multiple Storage Conditions
      Toxicity Irritant
      Storage Multiple storage requirements
      Storage ConditionsUpon arrival store the Microplates at room temperature, the Calcein-AM at -20°C and the remaining components at 4°C.
      Do not freeze Ok to freeze
      Packaging Information
      Transport Information
      Supplemental Information
      Kit contains96-Well Monocyte Cell Migration Chamber, Black, Conical 96-Well Plate, D-PBS, Calcein-AM, and a user protocol.
      Specifications
      Global Trade Item Number
      Catalogue Number GTIN
      CBA098-1KIT 04055977220667

      Documentation

      InnoCyte™ Monocyte Cell Migration Assay SDS

      Title

      Safety Data Sheet (SDS)

      InnoCyte™ Monocyte Cell Migration Assay Certificates of Analysis

      TitleLot Number
      CBA098

      References

      Reference overview
      Cravens, P.D. 2007. Scan. J. Immunol. 65, 514.
      Charo, I.F., et al. 2006. N. Engl. J. Med. 354, 610.
      Knitscher, U., et al. 2000. Eur. J. Pharmacol. 401, 259.
      Turner, L., et al. 1999. Eur. J. Immunol. 29, 2288.
      Cross, A.K., et al. 1997. Cytokine 9, 521.
      User Protocol

      Revision11-December-2022 JSW
      Form96 Tests
      Format96-Well Plate
      Detection methodFluorometric
      StorageUpon arrival store the Microplates at room temperature, the Calcein-AM at -20°C and the remaining components at 4°C.
      Intended useThe Calbiochem® InnoCyte™ 96-Well Monoctye Cell Migration Assay is intended for the study of the effects of various drugs or agents on monocyte motility or for identifying chemoattractant molecules. The assay is not intended for adherent cell lines, such as fibroblasts or solid tumor cell lines. To study these cell types, please use Cat. No. CBA010 or CBA017.
      BackgroundCell migration is critical for embryonic development, the inflammatory immune response, wound repair, and tumor formation. Circulating monocytes are precursors for phagocytes, such as macrophages and dendritic cells. In immune responses, monocyte migration is critical for providing immunological defense and eliminating infectious agents. Monocytes circulate in the blood until encountering specific chemotactic factors that initiate the migration process. Inflammatory disorders has become a focus area for development of pharmaceutical agents specific for a wide range of novel targets. Among these new targets are chemokines, proteins that attract cells of the immune system to sites of inflammation. The largest chemokine family consists of CC chemokines, so named because the first two of the four cysteine residues in these molecules are adjacent to each other. CC chemokines attract mononuclear cells to sites of chronic inflammation, such as sites of trauma, bacterial infection, toxin exposure, and ischemia. The monocyte chemoattractant proteins consist of a group of related peptides - CCL2, CCL7, CCL8, and CCL13 - encoded on chromsome 17. The CCR2 chemokine receptor is the only known receptor for CCL2 (monocyte chemoattactant protein-1) and CCL13. CCR2 and its primary ligand, monocyte chemoattractant protein-1 (MCP-1), are the most popular targets for drug development. These two factors play a key role in attracting monocytes to inflammatory sites, where the monocytes differentiate to become macrophages that secrete inflammatory cytokines like TNF-α. Clinical examples include multiple sclerosis (MS) and atherosclerosis. In the lesions of MS, MCP-1 is expressed in astrocytes, while infiltrating monocytes/macrophages express CCR2. In atherosclerosis, CCL2 is present in macrophage-rich atherosclerotic plaques. Several CCR2 antagonists are currently in clinical trials.
      Principles of the assayThe Calbiochem® InnoCyte™ 96-Well Monocyte Cell Migration Assay is provided in a convenient 96-well format. The assay is based on the Boyden-chamber principle. Each well of the 96-well cell culture insert contains a polycarbonate membrane with a 5 µm pore size, which is suitable for monocytes. Cells are placed in the wells of the upper chamber in serum-free medium, while medium containing serum or chemotactic substances is placed in the wells of the lower chamber. Migrated cells from the wells of the lower chamber are transferred to wells of a black 96-well plate and labeled with calcein-AM. Fluorescence is determined using a 96-well plate fluorimeter with an excitation wavelength of ~485 nm and an emission wavelength of ~520 nm. The fluorescence intensity is proportional to the number of migrated cells.
      Materials provided• 96-Well Monocyte Cell Migration Chamber (Kit Component No. JB324-1EA): 1 sterile plate, 96 wells with cell culture inserts (upper chamber) and tray (lower chamber)
      • Black, Conical 96-Well Plate (Kit Component No. JB325-1EA): 1 plate, 96 wells
      • Calcein-AM Solution (Kit Component No. JA7705-50UL): 1 vial, 50 µl
      • D-PBS (Kit Component No. JA7706-10ML): 1 bottle, 10 ml
      • Plate Sealers: 2 plate sealers
      Materials Required but not provided• Fluorescence plate reader capable of measuring fluorescence in 96-well plates at an excitation wavelength of ~485 nm and an emission wavelength of ~520 nm
      • Pipettes
      • PBS for washing the cells
      Reagent preparationCell Labeling Mixture: Warm the D-PBS and Calcein-AM Solution to room temperature. Add 35 µl Calcein-AM Solution to 10 ml D-PBS. Mix well. Note: Prepare just before use (see step 7 of the Detailed Protocol below).
      Detailed protocol1. Harvest cells and wash 2 times with PBS.
      2. Resuspend the cell pellet in serum-free medium or D-PBS to a final cell concentration of ~ 2-4 x 106 cells/ml.
      3. Remove the cell culture insert (upper chamber) from the 96-well tray (lower chamber) of the 96-Well Monocyte Cell Migration Chamber.
      4. Add 150 µl appropriate serum-free cell culture medium containing desired chemoattractants (e.g., serum or chemokines) to the lower chamber. Prepare a negative control with cell culture medium without serum or other chemoattractants.
      5. Place the cell culture inserts (upper chamber) in the 96-well tray (lower chamber) and add 100 µl of the cell suspension to appropriate wells of the cell culture insert (upper chamber); replace the lid.
      6. Incubate for 2-20 h in a CO2 cell culture incubator.
      7. At the end of the incubation period in step 6, prepare the Cell Labeling Mixture as outlined under Reagent Preparation.
      8. Following the incubation in step 6, remove the upper chamber and discard it.
      9. Transfer the medium containing cells from the wells of the lower chamber to wells in the Black, Conical 96-Well Plate with a multi-channel pipette.
      10. Place the Black, Conical 96-Well Plate containing the cells in a bench-top centrifuge equipped with plate holders and centrifuge for 5-10 min at 250-300 x g at 10-25°C.
      11. Discard the supernatant by shaking the inverted plate over the sink once or twice without dislodging the pelleted cells at the bottom of the wells.
      12. Add 200 µl PBS to each well and then discard gently (small volume left in the well is fine); do not resuspend the cells. Tap the inverted plate gently on a stack of paper towels.
      13. Add 100 µl Cell Labeling Mixture to each well, pipette up and down several times to obtain a homogenous cell suspension, and cover the plate with a Plate Sealer.
      14. Incubate for 30-60 min at 37°C in the CO2 incubator.
      15. Read the fluorescence using a fluorescence plate reader set at an excitation wavelength of ~485 nm and an emission wavelength of ~520 nm.
      Assay characteristics and examples

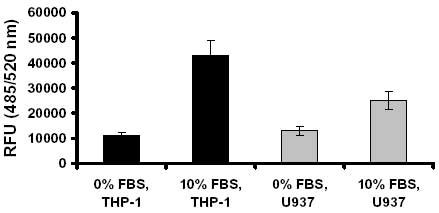

      Figure 1: Serum Mediated Migration of THP-1 and U937 Cells

      40,000 THP-1 or U937 cells were incubated in triplicate wells of the upper chamber and allowed to migrate toward medium with or without 10% serum in the lower chamber for 3 h in a 6% CO2 incubator at 37°C. The cells were labeled as outlined in the Detailed Protocol.


      Figure 2: MCP-1 and Serum Mediated Migration of THP-1 Cells

      40,000 THP-1 cells were incubated in triplicate wells of the upper chamber and allowed to migrate toward medium with or without chemotactic agent in the lower chamber for 3 h in a 6% CO2 incubator at 37°C. The cells were labeled as outlined in the Detailed Protocol.
      Registered TrademarksCalbiochem® is a registered trademark of EMD Millipore, Inc.
      InnoCyte™ and Interactive Pathways™ are trademarks of EMD Millipore, Inc.
