MFGL20SK3 Gamma sterilized Millipak® Final Fill 200 Filter Unit 0.22  µm 3/4  in. TC - 1/2   in. HB

MFGL20SK3
3  Double Easy-Open bag
Preis wird abgerufen...
Preis nicht abrufbar
Die Mindestmenge muss ein Vielfaches sein von
Maximum Quantity is
Bei Bestätigung Weitere Informationen
Sie haben () gespart

—
Bitte erfragen
—
Eingeschränkte Verfügbarkeit Eingeschränkte Verfügbarkeit
Lieferbar
Produkt wurde eingestellt
Begrenzter Lagerbestand
Bestätigung der Verfügbarkeit erforderlich
    Restmenge: Angebot folgt
      Restmenge: Angebot folgt
      Bitte erfragen
      Kontakt zum Kundenservice
      Contact Customer Service



      Kontakt zum Kundenservice

      Übersicht

      Replacement Information
      Description
      Catalogue NumberMFGL20SK3
      Trade Name
      • Millipak®
      DescriptionGamma sterilized Millipak® Final Fill 200 Filter Unit 0.22  µm 3/4  in. TC - 1/2   in. HB
      References
      Product Information
      Device ConfigurationGamma Gold Capsule
      Connections, Inlet/Outlet19  mm (¾  in.) sanitary flange inlet and 13  mm (½  in.) hose barb outlet
      Maximum Differential Pressure, bar (psid)Foward:80 psi (5.5 bar) at 25 °C (0.1 µm, 0.22 µm, 0.45 µm, hydrophobic 0.22 µm); Reverse: 10 psi (0.7 bar) at 25 °C
      Maximum Inlet Pressure, bar (psi)80 psi (5.5 bar) at 25 °C
      Good Manufacturing PracticesThese products are manufactured in a facility which is certified to ISO® 9001:2015 Quality Management Systems.
      Quality LevelMQ400
      Applications
      Biological Information
      Bacterial EndotoxinsAqueous extraction contains < 0.25 EU/mL per device as determined using the Limulus Amebocyte Lysate (LAL) test, meeting requirements of USP <85>, EP 2.6.14 and JP 4.01.
      MediaDurapore®
      Sterilitysterilized by gamma irradiation
      SterilizationDevice integrity and retention was maintained after 3 autoclave cycles of 90 minutes at 126  °C. Devices can withstand a dose ≤ 40  kGy gamma exposure.
      Bacterial RetentionQuantitative retention of 107 CFU/cm2 Brevundimonas diminuta ATCC® 19146 per AST® F838 methodology.
      WettabilityHydrophilic
      Physicochemical Information
      Pore Size0.22 µm
      Inlet ConnectionSanitary Flange
      Outlet ConnectionHose Barb
      Bubble Point at 23 °C≥ 50 psi (3450 mbar) air with water
      Flow Rate7.61 L/min @ 1.1   bar ∆P
      Non-Fiber ReleasingThis product was manufactured with a Durapore® membrane which meets the criteria for a “non-fiber releasing” filter as defined in 21 CFR 210.3 (b)(6), validated based on large volume parenteral specifications as detailed in USP <788> Particulate Matter in Injections
      USP Bacterial EndotoxinsAqueous extraction contains < 0.25 EU/mL per device as determined using the Limulus Amebocyte Lysate (LAL) test, meeting requirements of USP <85>, EP 2.6.14 and JP 4.01.
      Dimensions
      Filtration Area1000 cm²
      Process Volume200 L
      Inlet Connection Diameter3/4in.
      Outlet Connection Diameter1/2in.
      Materials Information
      Chemistry
      • Polyvinylidene Fluoride (PVDF)
      Device Material
      • Polysulfone
      Support MaterialPolysulfone
      Toxicological Information
      Safety Information according to GHS
      Safety Information
      Product Usage Statements
      Storage and Shipping Information
      Packaging Information
      Material Size3
      Material PackageDouble Easy-Open bag
      Transport Information
      Supplemental Information
      Specifications
      Global Trade Item Number
      Bestellnummer GTIN
      MFGL20SK3 04054839379505

      Documentation

      Material Qualification Dossier

      TitelVersion
      1.0

      Quality Management Dossier (Open Access)

      Title

      Operational Excellence Dossier

      Title

      Qualitätszertifikate

      Titel
      Millipak Final Fill Capsule Durapore Membrane C1HB15239
      Millipak Final Fill Capsule Durapore Membrane C4CB15161
      Millipak Final Fill Capsule Durapore membrane C4AB67036

      Technische Informationen

      Titel
      Improved Product Recovery using Blow-down and Millipak®Final Fill Filters
      Integrity Test Troubleshooting - Beyond Rewet and Retest
      Reduce Contamination Risks and Simplify Filtration System Design and Operation

      Gebrauchsanleitungen

      Titel
      Wetting Instructions for Filter Units with Durapore Membrane

      Verwandte Produkte & Anwendungen

      Produktfamilien

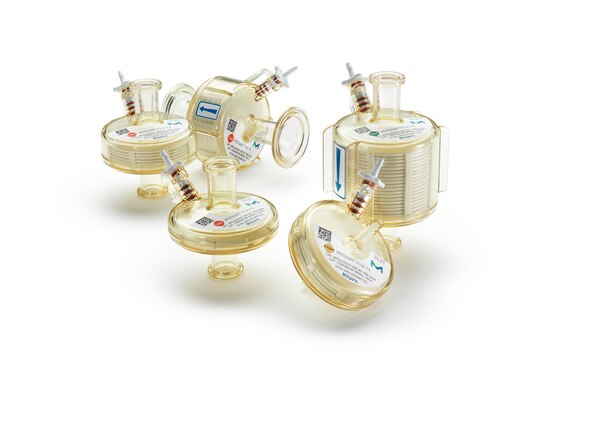

      Millipak® Final Fill Filters

      Stacked disc filters designed to maximize recovery and enhance protection of your high value product
