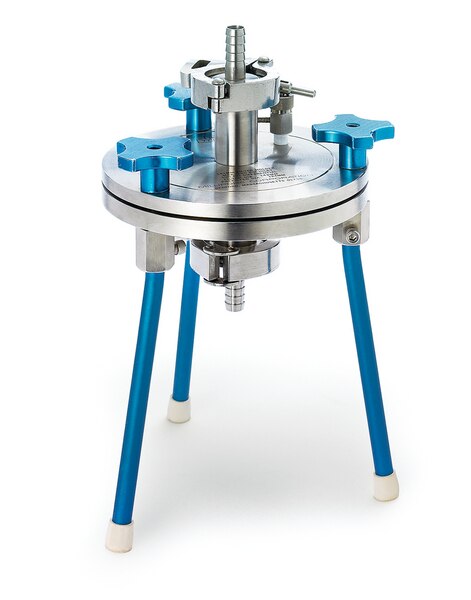

Standing Stainless Steel Filter Holders (90 and 142 mm)
Filter holder for contamination analysis
More
Filter holder for contamination analysis Less
More>>
Less<<
Related Resources
Recommended Products
-
05-175 Sigma-Aldrich Anti-Myb Antibody, clone 1-1 -
AB2039 Sigma-Aldrich Anti-Elastin Antibody -
1008592500 Supelco Ethylene glycol monomethyl ether -
07-722 Sigma-Aldrich Anti-phospho-VEGFR2/Flk-1/KDR (Tyr1054) Antibody -
HGTC075SP Millipore Gasket 3/4in, silicone -
AB9744 Sigma-Aldrich Anti-14-3-3 τ (tau) Antibody -
FC-125ML-BK Millipore Anti-Leb from the clone P3F234MD4, Human IgA, Intermediate for further manufacturing use -
1054770250 SAFC Sodium Pyruvate -
AB1870 Sigma-Aldrich Anti-Osteopontin Antibody -
06-578-I-100UL Sigma-Aldrich Anti-PI4-Kinase β
Overview
Specifications
Ordering Information
Documentation
FAQ
| Question | Answer |
|---|---|
| I just purchased one of your stainless filter holders and after only a few uses it is starting to rust. Is the unit defective? | Rusting of stainless steel holders can usually be attributed to high iron content in the water. Iron deposits create rust "stains" that can be removed with non abrasive cleaners or sometimes fine steel wool. All stainless steel can rust over time. It should be washed with DI water and dried thoroughly immediately after each use. |
Related Products & Applications
Related Products By: Application Facete
| Dialysis and Filtration |
Categories
| Reagents, Chemicals and Labware > Lab Filtration > Filter Holders and Accessories |
Applications
Ultraclean or sterilize liquids or gases by pressure filtration. Autoclave with Durapore filter inplace.
)
90 mm filter holder
| Replacement Parts | |
| 1 | Hose adapter, 1/4in. NPTM to 3/8in. ID |
| 2 | Hex-cap Screws |
| 3 | Vent/Relief Valve |
| 4 | Top Plate |
| 5 | O-rings, 90 mm filter housing, PTFE |
| 6 | Support Screen, PTFE-coated |
| 7 | Underdrain Support, 90 mm |
| 8 | Bottom Plate |
| 9 | Hose adapter, 1/4in. NPTM to 3/8in. ID |
| 10 | Legs (3) |
)
142 mm filter holder
| Replacement Parts | |
| 1 | Hand Knob |
| 2 | Adapter 1-1/2 in. TC to 14 mm |
| 3 | 1 1/2 in. TC silicone gasket |
| 4 | Clamp 1 1/2 in. TC |
| 5 | Vent/Relief Valve, 9 bar (125 psig) |
| 6 | Top Plate |
| 7 | O-ring, 2-251, PTFE |
| 8 | Inlet Flow Deflector, 316 Holder |
| 9 | Support Screen for 142 mm filter holder, PTFE-coated |
| 10 | Underdrain Support, 142 mm |
| 12 | Bottom Plate |
| 14 | Legs with Caps, 3/16 in. wrench |
The stainless steel filter holders are designed to ultraclean or sterilize liquids or gases by pressure filtration. PTFE-faced support screens permit autoclaving with membranes in place.
| 90 mm Holder | 142 mm Holder | |
| Materials | ||
| Holder | 316 stainless steel with anodized aluminum legs | 316 stainless steel with anodized aluminum legs |
| O-rings | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Filter Diameter | 90 mm | 142 mm |
| Filtration Area | 45.5 cm² | 127 cm² |
| Prefilter Diameter | 75 mm | 124 mm |
| Type AP | 75 | 124 |
| Type RW | 90 | 142 |
| Maximum Inlet Pressure, bar (psi) | 19 bar (275 psi) | 14 bar (200 psi) |
| Maximum Differential Pressure, bar (psid) | 5 bar (75 psid) | 7 bar (100 psid) |
| Dimensions | ||
| Height | 17.1 cm (plus inlet connector) | 27 cm (plus inlet connector) |
| Diameter | 12.1 cm | 18.4 cm |
| Fittings | ||
| Fittings, Inlet/Outlet | 1/4 in. NPTF with connections supplied for 9.5 mm I.D. hose | 1-1/2 in. Sanitary Flange with clamps and adapters supplied for 14 mm I.D. hose |
| Vent/Relief Valve | 1/8" NPTM vent/relief valve attachment | 1/8" NPTM vent/relief valve attachment |
| Shipping Weight | 2.8 kg (6.2 lb.) | 6.4 kg (14.1 lb.) |
